Technical specifications

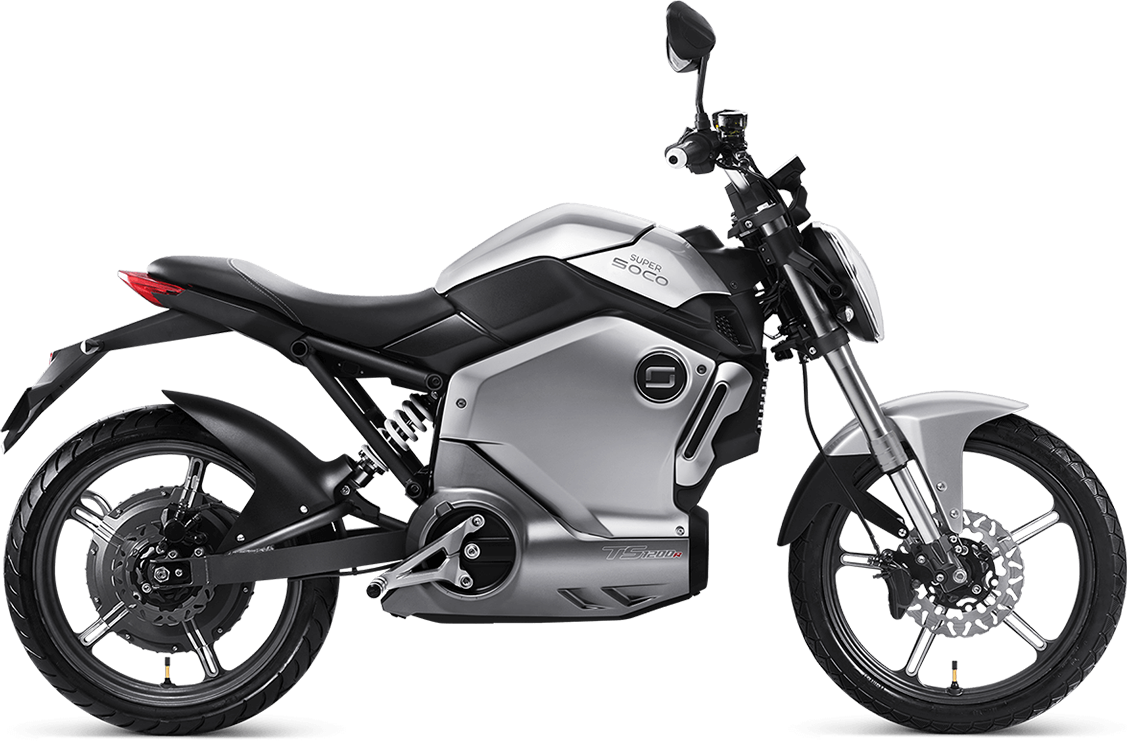

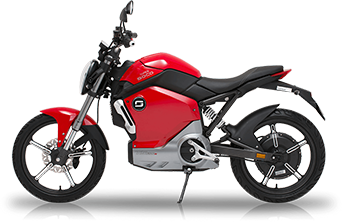

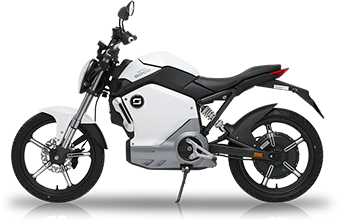

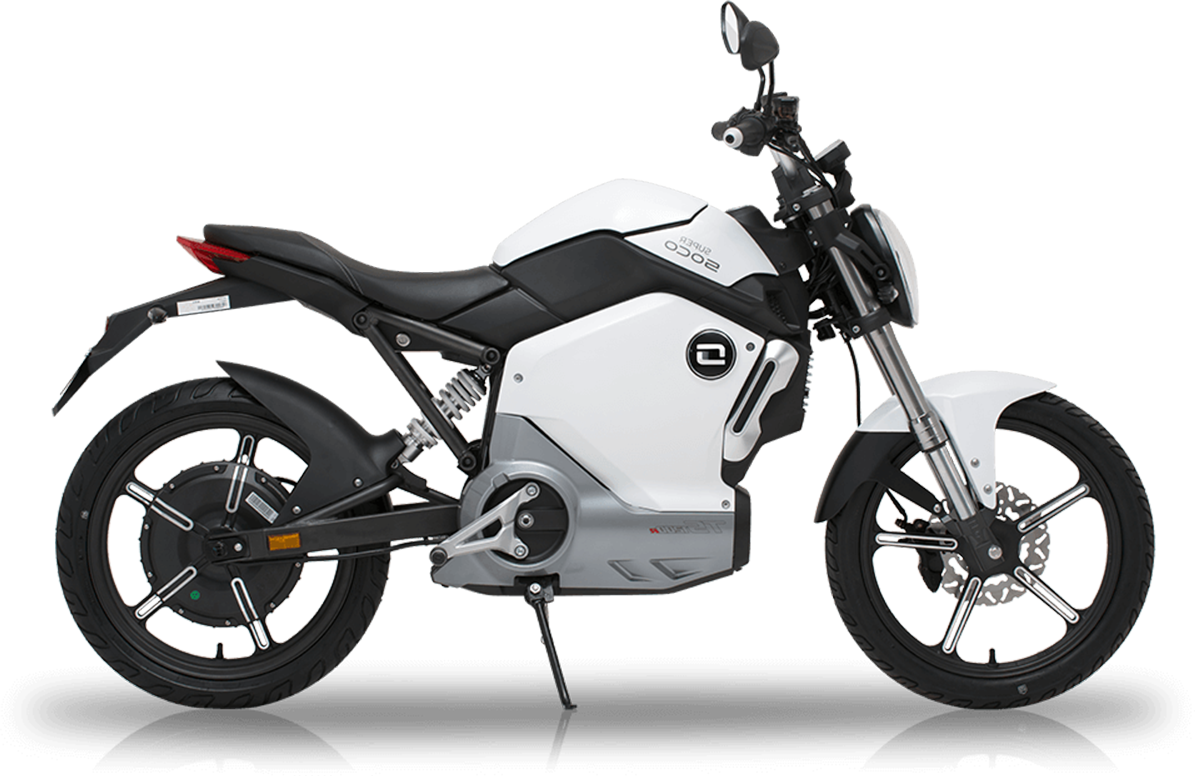

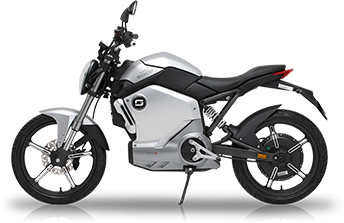

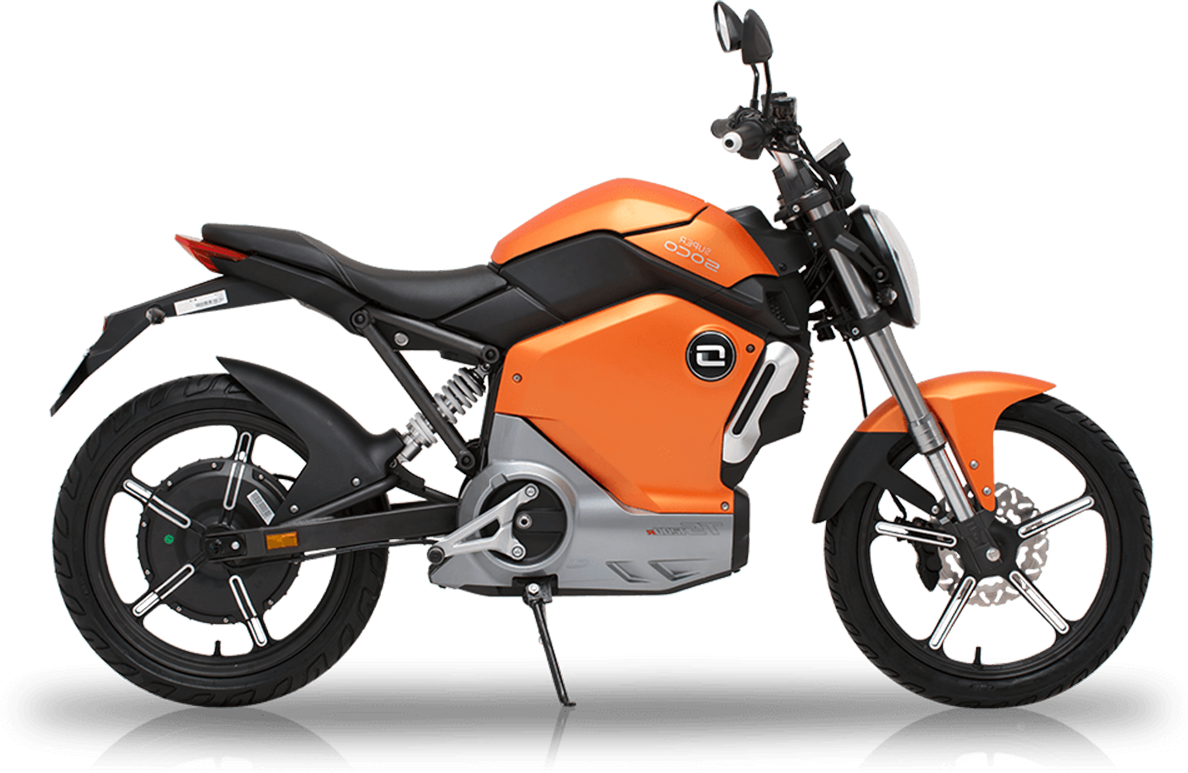

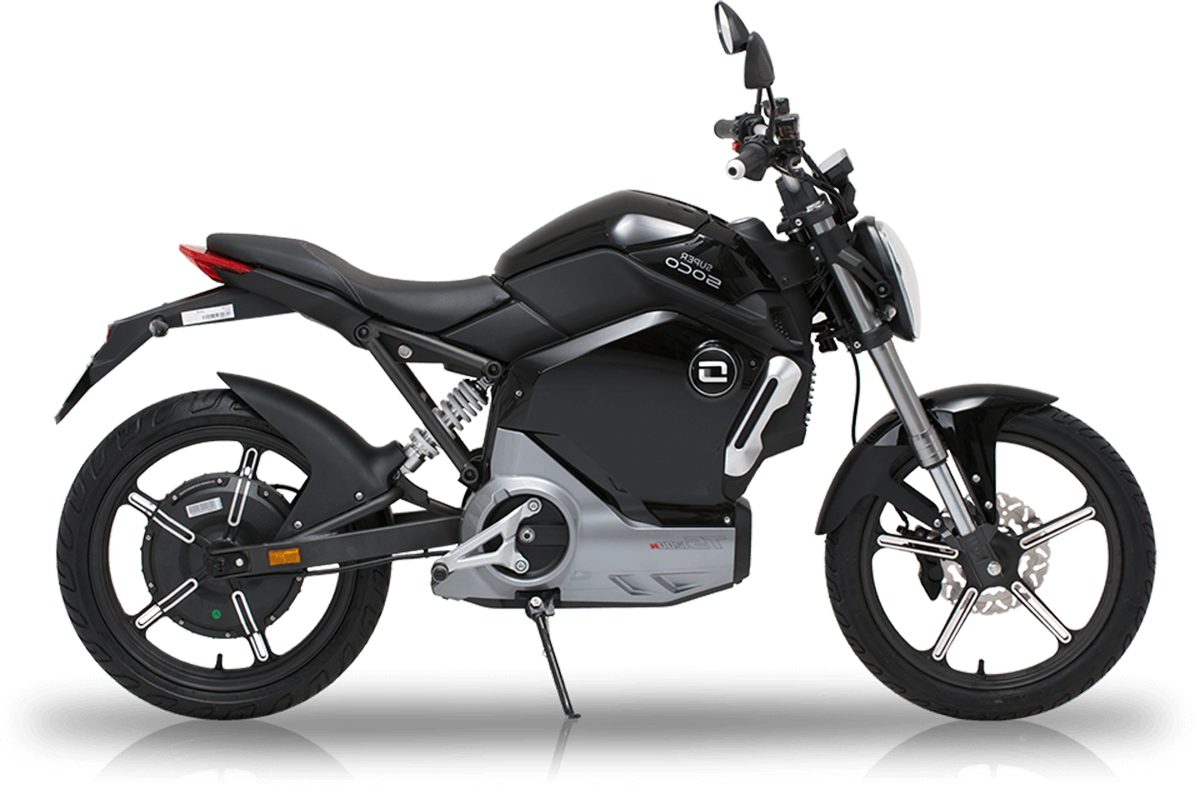

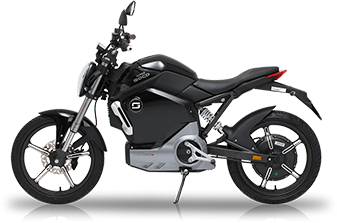

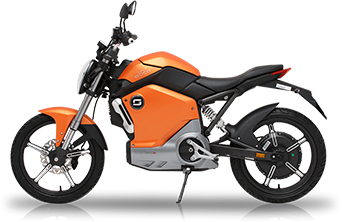

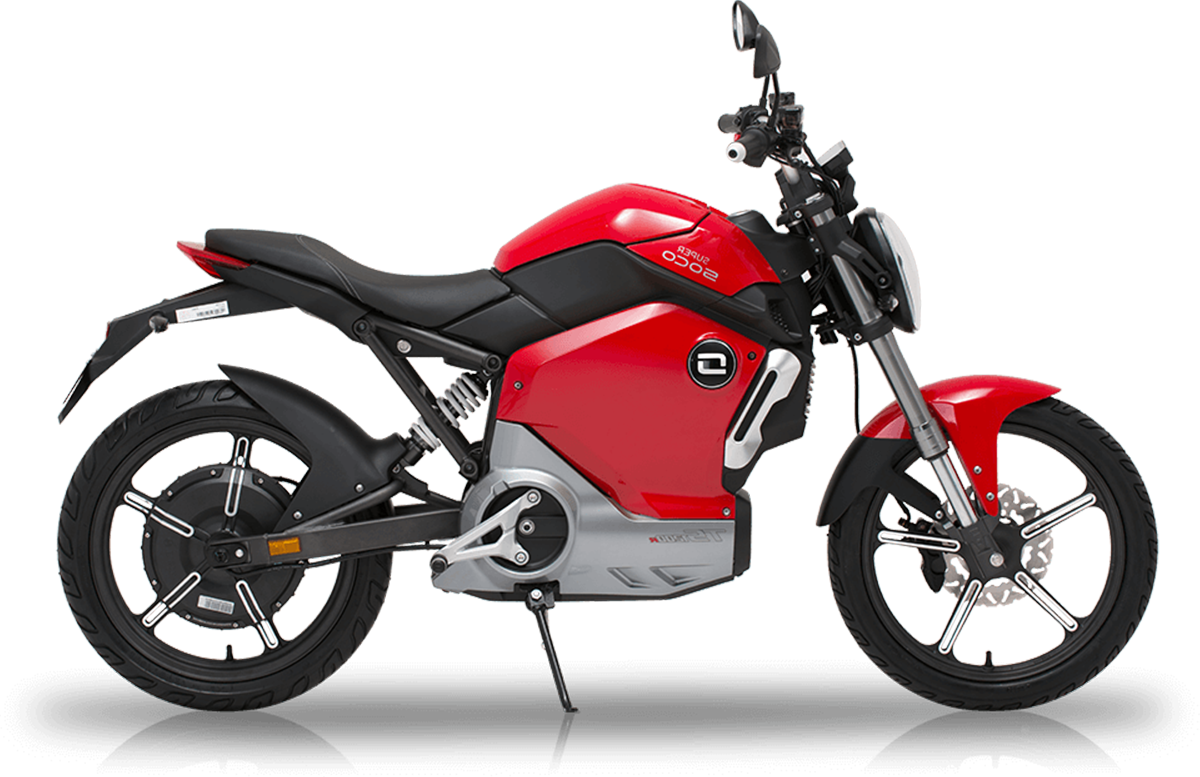

Super SOCO TS1200R

45 km/h

Top Speed
(Limited)

Range

Net weight

Remote Key

Key

Foot rest for passenger

Max. power: 2.400 Watt

Motor type: Electric hubmotor

Manufacturer: BOSCH

Power management: Field Oriented Control (FOC)

Max. torque: 120 Nm

Max. slope: abt. 15 ° at drive off

Wheelbase: 1.320 mm

Length: 1.889 mm

Width: 702 mm

Height: 1.300 mm

Seat height: 770 mm

Ground clearance: 198 mm

Front wheel: 70/100 – 17 inches

Rear wheel: 100/70 – 17 inches

Seats: 2

Max. loading: abt. 170 kg

Max. range: 80 km per battery
(160 km with 2 batteries)

Battery type: Lithium Ion

Power cells: Panasonic / Samsung / LG

Voltage: 60 V

Capacity: 26 Ah (per battery)

Charging time: abt. 5 hours

Charger: 230 V

Lights: LED (front, rear, flashing)

Display: LCD

Remote key: 2 pieces

Bluetooth: yes, 4.0
